Robust, compact WXGA laser projector with 5,000 Lumens.

The compact, affordable PowerLite L500W laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 5,000 Lumens color/white brightness¹. This robust projector also offers WXGA resolution for widescreen images. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours². And, it offers virtually maintenance-free operation with no lamps. Plus, it features a Dynamic contrast ratio up to 2,500,000:1. It also features advanced installation features and enterprise-level wireless security support (module sold separately).

• Model: V11H908020

Bright, vivid color
5,000 Lumens color/white brightness1.
Colorful, widescreen images up to 280"
WXGA resolution (1280 x 800)
Breakthrough laser technology
features a laser light source of up to 20,000 hours2; plus, Instant ON/OFF
Extraordinary sharpness and detail
up to 2,500,000:1 Dynamic contrast ratio
Optional wireless networking with enterprise-level security
plus wireless content sharing with Epson iProjection™3; wireless module sold separately
Virtually maintenance-free operation
no lamps

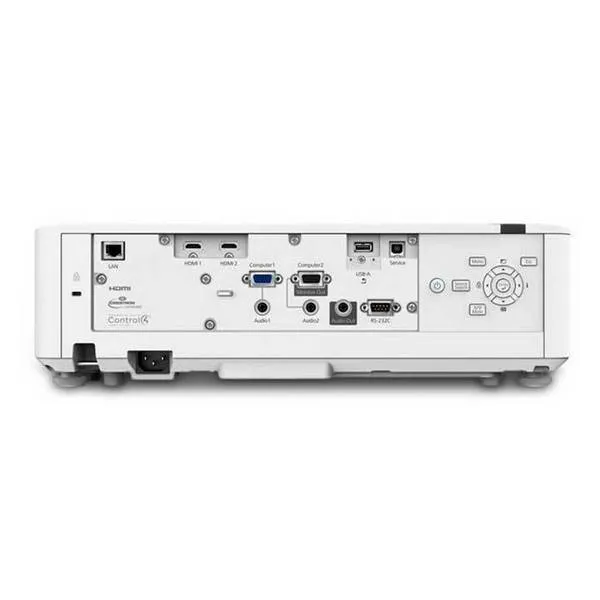

• Versatile connectivity — supports 2x HDMI®, VGA, RJ-45, stereo mini and more
• Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
• Constant Brightness Mode4 — fine-tune the brightness setting to help maximize run time
• Remote management and control tools — compatible with Crestron®, AMX®, PJLink and more; offers easy access and maintenance

Eco Features

• RoHS compliant
• Recyclable product5
• Epson America, Inc. is a SmartWay™ Transport Partner6

Specifications

Projection System:RGB Liquid Crystal Shutter Projection System
Projection Method:Front, Front/Ceiling, Rear, Rear/Ceiling
LCD Screen:0.59" (D8 with C2Fine™)
Driving Method:Poly-silicon TFT Active Matrix
Pixel Number:1,024,000 dots (1280 x 800) x 3
Color Brightness - Color Light Output:5,000 Lumens
White Brightness - White Light Output:5,000 Lumens
Aspect Ratio:16:10Resolution:1280 x 800 (WXGA)
Throw Ratio Range:1.38–2.24Size - projected distance:60" screen: 1.79–2.92 m
Keystone Correction:Vertical: ±30 degrees; Horizontal: ±30 degrees
Contrast Ratio:Up to 2,500,000:1
Color Processing:10 bit
Color Reproduction:Up to 1.07 billion colors
Light Source Life:Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Laser Type:Laser Diode

Effective Scanning Frequency Range:
Pixel Clock:Analog: 13.5–162 MHz (up to UXGA 60 Hz)
Digital: 13.5–162 MHz (up to UXGA 60 Hz)
Horizontal:Analog: 15–92 kHz
Digital: 15–75 kHz
Vertical:Analog: 50–85 Hz
Digital: 24/30/50/60 Hz

Projection Lens:
Type:Optical Zoom (Manual)/Focus (Manual)
F-number:1.5–1.7
Screen Size:Zoom: Wide: 29"–280" [0.85–8.45 m]; Zoom: Tele: 29"–280" [1.40–13.71 m]
Focal Length:18.2–29.2 mm
Zoom Ratio:1–1.6Lens Cover:Lens cap (without string)

Brand Name: Epson
Item Weight: 18.7 pounds
Product Dimensions: 17.3 x 12 x 5.3 inches
